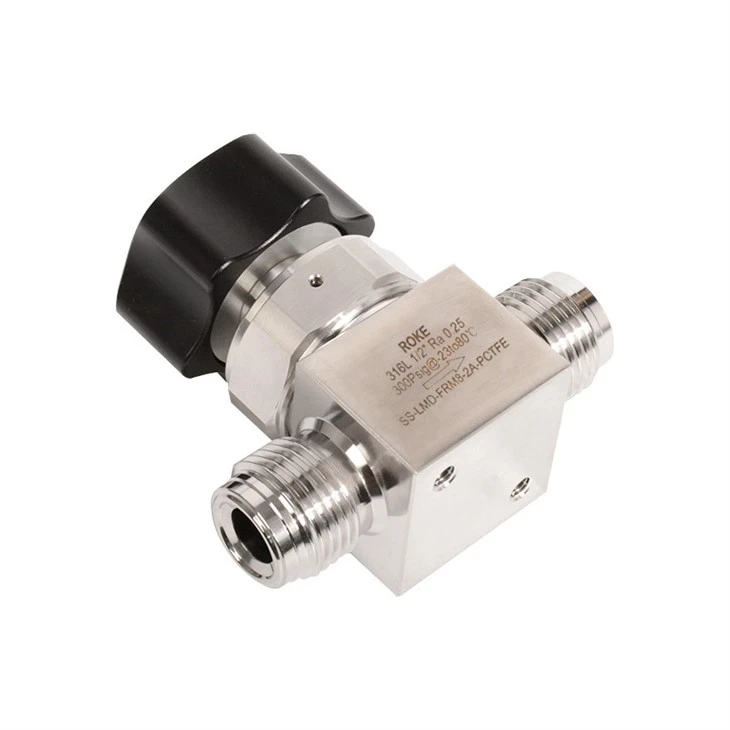

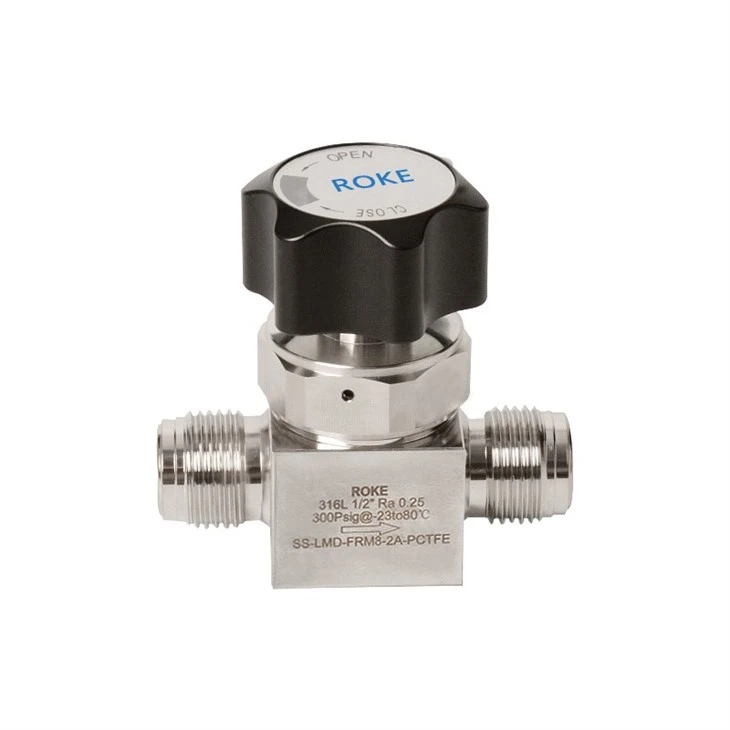

Low Pressure Medium Flow Diaphragm Valves
Type:Diaphragm Valves
Material: Stainless Steel
Working temperature: PCTFE：-23 ~80 °C (-10 ~176 °F)
PFA：-23 ~150 °C (-10 ~302 °F)
Place of Origin: Jiangsu, China
Application: Industrial Usage
Flow Coefficient (Cv):0.7
Certificate: CE,BV,ISO,DNV,ABS
Maximum Working pressure : 20 bar (300 psig)
Power: Manual
Port Size: 3/8 "to 1/2 "or 8 mm to 12 mm
Seal Material: PCTFE or PFA
Welcome to purchase low price low pressure medium flow diaphragm valves made in China or try the customized service with Naco Fluid Equipment, which has been focused on this field since 2008. We are equipped with a professional and productive factory which can offer you cheap price. Now, take action to get free sample of low pressure medium flow diaphragm valves with us.
Low Pressure Medium Flow Diaphragm Valves
LMD Series (300 psig)
Features
◎Suitable for high purity and ultra high purity applications
◎Suitable for medium flow applications
◎Internally without threads or springs,can completely clean the flow channel
◎Fully contained seat to provide excellent resistance to swelling and contamination
◎Cobalt alloy diaphragm with high strength and corrosion resistance to ensure long cycle life
◎Manual and pneumatic actuators available
FAQ:
Q1:Do you provide material traceability?
A:Yes. Every batch is laser-marked with heat number, traceable to the EN 10204 3.1 mill test certificate provided free with each shipment.
Q2:What quality system certifications do you hold?
A:ISO 9001:2015 for quality, ISO 14001 environmental, ISO 45001 occupational H&S, and API Q1 for oil & gas manufacturing.
