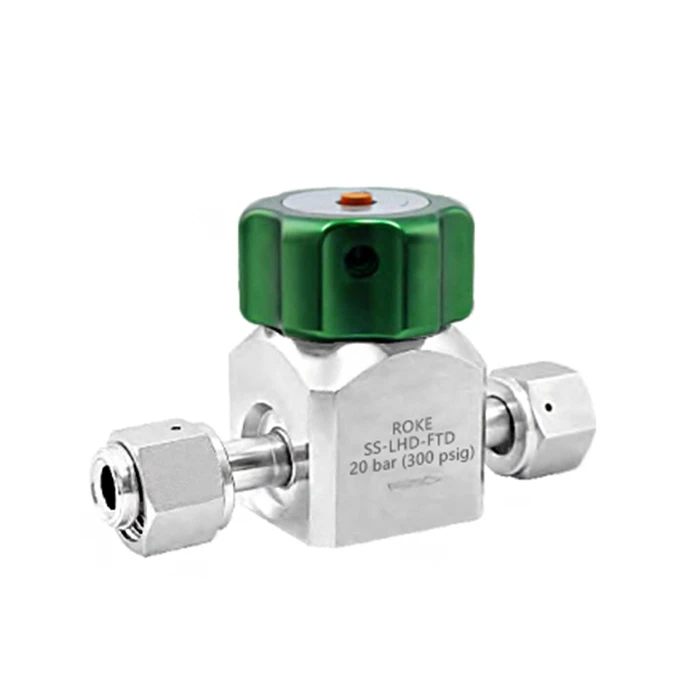

Low Pressure High Flow Diaphragm Valves
Type:Diaphragm Valves
Material: Stainless Steel
Working temperature: PCTFE：-23 ~80 °C (-10 ~176 °F)
Polyiwide：-23 ~121 °C (-10 ~250 °F)
Place of Origin: Jiangsu, China
Application: Industrial Usage
Flow Coefficient (Cv):2.8
Certificate: CE,BV,ISO,DNV,ABS
Maximum Working pressure : 20 bar (300 psig)
Power: Manual
Port Size: 1/2 "to 1 "or 12 mm to 18 mm
Welcome to purchase low price low pressure high flow diaphragm valves made in China or try the customized service with Naco Fluid Equipment, which has been focused on this field since 2008. We are equipped with a professional and productive factory which can offer you cheap price. Now, take action to get free sample of low pressure high flow diaphragm valves with us.
Low Pressure High Flow Diaphragm Valves
LHD Series (300 psig)
Features
◎Suitable for high purity and ultra high purity applications
◎Suitable for High flow applications
◎No springs or threads in welted areas to ensure clean operation
◎Tied-diaphragm design to provide positive stem retraction
◎Cobalt alloy diaphragm with high strength and corrosion resistance to ensure long cycle life
◎Manual and pneumatic actuators available

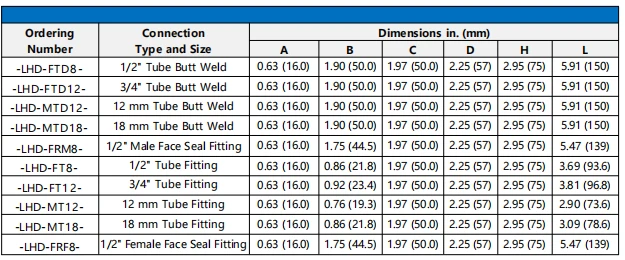

Dimensions
FAQ:
Q1:DCan you accept third-party inspection (TPI)?
A:Yes. We routinely host SGS, TÜV, BV, DNV, ABS, Lloyd's, and end-user inspectors for pre-shipment inspection, witness test, and dossier review.
Q2:Are samples available?
A:Yes. Free samples for standard items under USD 100 (customer pays freight). Custom samples quoted case by case.
