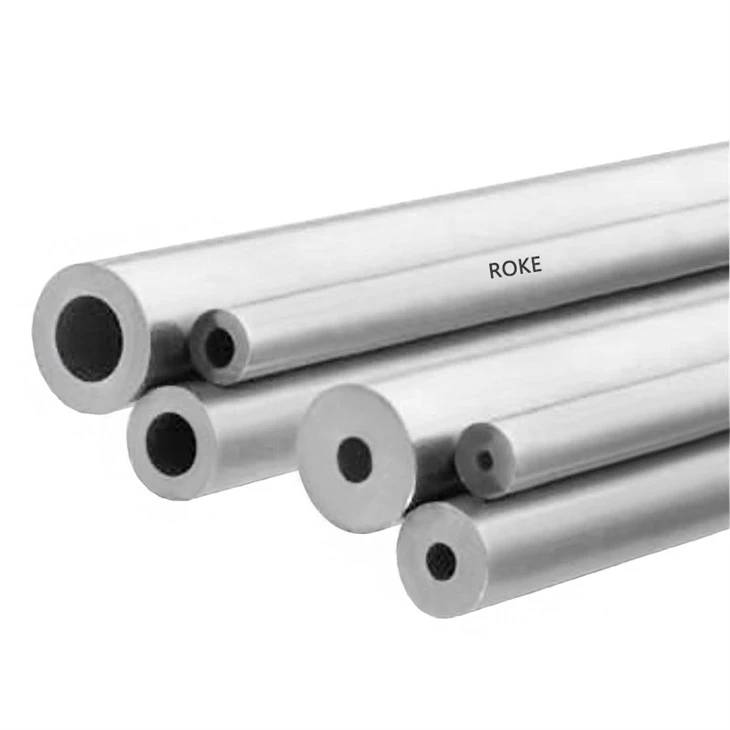

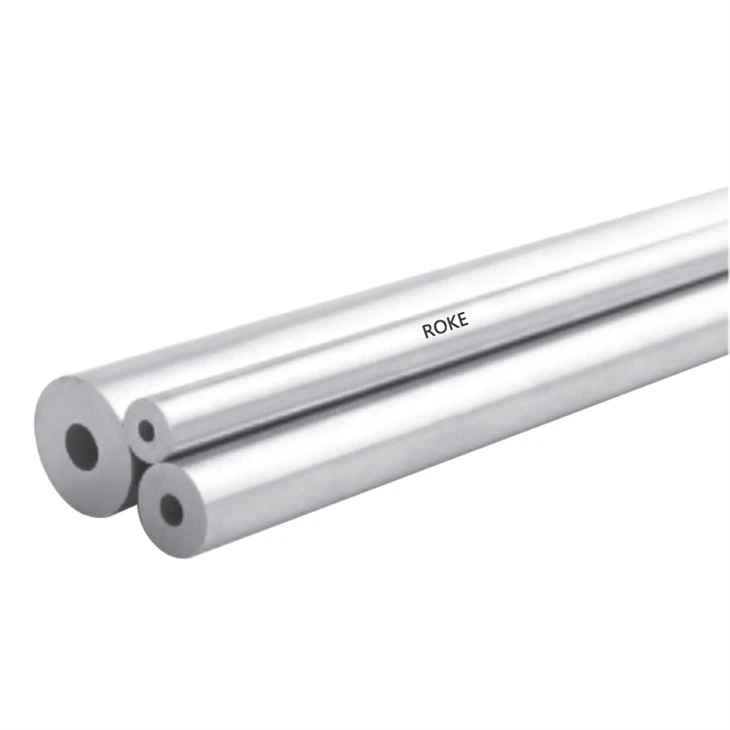

Medium & High Pressure Tubing

Welcome to purchase low price medium & high pressure tubing made in China or try the customized service with Naco Fluid Equipment, which has been focused on this field since 2008. We are equipped with a professional and productive factory which can offer you cheap price. Now, take action to get free sample of medium & high pressure tubing with us.

Medium Pressure Tubing 15,000 psig

T15 Series

Features

◎ Materials：316/316L,enhanced 316L

◎ Max Working pressures：15,000 psig (1034 bar)

◎ Working temperature：-325°F to 1000°F (-198°C to 537°C)

◎ Supply conditions: Annealed seamless tubing or Cold-Drawn 1/8-Hard Seamless Tubing

◎ For use with 15,000 psig tube fittings

◎ Marked with brand, material grade, specification, pressure, annealing designator and heat number

◎ Standard length: 10 ft, 20 ft, 3 m and 6 m. Customized length as per customer requirement is also available

Medium Pressure Tubing 20,000 psig

T20D Series

Features

◎ Materials：316/316L,enhanced 316L

◎ Max Working pressures：20,000 psig (1379 bar)

◎ Working temperature：-325°F to 800°F (-198°C to 427°C)

◎ Supply conditions: cold-drawn 1/8-hard seamless tubing

◎ For use with 20,000 psig tube fittings

◎ Marked with brand, material grade, specification, pressure, annealing designator and heat number

◎ Standard length: 10 ft, 20 ft, 3 m and 6 m. Customized length as per customer requirement is also available

High Pressure Tubing 60,000 psig

T60H Series

Features

◎ Materials：316/316L,enhanced 316L

◎ Max Working pressures：60,000 psig (4138 bar)

◎ Working temperature：-423°F to 1200°F (-252°C to 649°C)

◎ Supply conditions: cold-drawn 1/8-hard seamless tubing

◎ For use with 60,000 psig high pressure fittings

◎ Marked with brand, material grade, specification, pressure, annealing designator and heat number

◎ Standard length: 10 ft, 20 ft, 3 m and 6 m. Customized length as per customer requirement is also available
