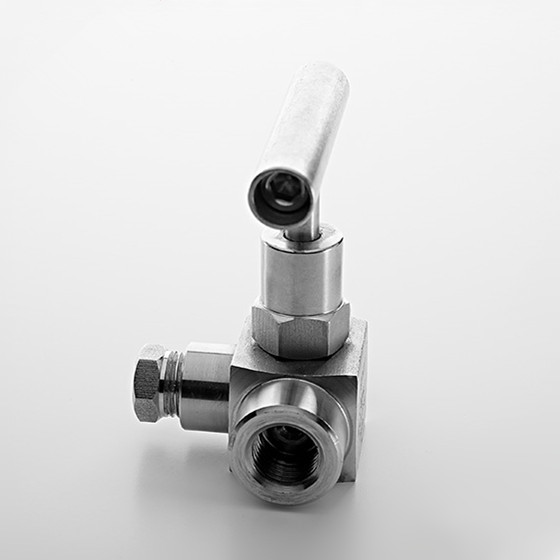

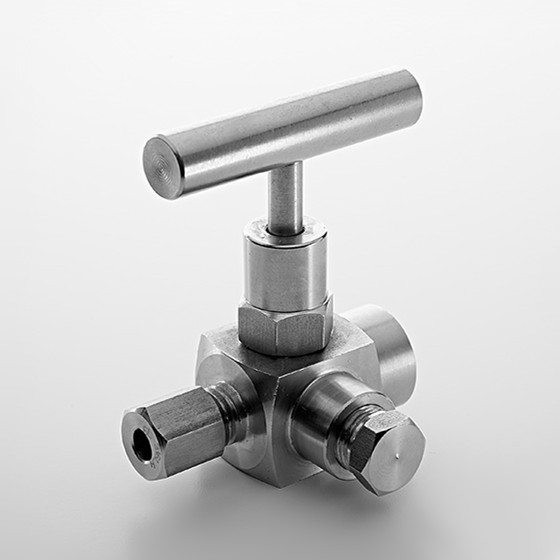

Female Thread Union Bonnet Needle Valves
Model number:SS-UN-FN
Place of origin:Jiangsu, China
Standard: API598-2009
Pressure: UN Series:
6000 psig (414 bar)
UNH Series: 10000 psig (689 bar)
Power: Manual
Thread:NPT,BSPT
Application:General
Temperature:
PTFE: -65°F to 450°F (-54°C to 232°C)
PEEK: -65°F to 500°F (-54°C to 260°C)
Graphite: -65°F to 1200°F(-54°C to 649°C)
Media: Gas,oil, acid, water, base etc
Port Size: 1/4-1inh
Brand Name: Roke
Certificate: CE,ISO9001,BV,DNV,ABS,RS
Place of origin:Jiangsu, China
Standard: API598-2009
Pressure: UN Series:
6000 psig (414 bar)
UNH Series: 10000 psig (689 bar)
Power: Manual
Thread:NPT,BSPT
Application:General
Temperature:
PTFE: -65°F to 450°F (-54°C to 232°C)
PEEK: -65°F to 500°F (-54°C to 260°C)
Graphite: -65°F to 1200°F(-54°C to 649°C)
Media: Gas,oil, acid, water, base etc
Port Size: 1/4-1inh
Brand Name: Roke
Certificate: CE,ISO9001,BV,DNV,ABS,RS
Send Inquiry
Product Introduction
Standard Materials of Construction
NO. | Component | Material | ||
316 SS | F91 | Alloy C-276 | ||
1 | Handle | Anodized aluminum or stainless steel | ||
2 | Set Screw | Stainless steel | ||
3 | Upper Stem | 316 SS/A276 | F91/A182 | C-276/B574 |
4 | Packing Bolt | 316 SS/A276 | F91/A182 | C-276/B574 |
5 | Lock Nut | 304 SS/A276 | ||
6 | Panel Nut | 304 SS/A276 | ||
7 | Gland | 316 SS/A276 | F91/A182 | C-276/B574 |
8 | Packing | PTFE or PEEK or Graphite | ||
9 | Bonnet | 316 SS/A276 | F91/A182 | C-276/B574 |
10 | Union Nut | 316 SS/A276 | F91/A182 | C-276/B574 |
11 | Lower Stem | Chrome-plated 316 SS/A276 | Chrome-plated F91/A182 | C-276/B574 |
12 | Body | 316 SS/A182 | F91/A182 | F92/A182 |
